CrystalAir supplies industrial-grade exhaust fans designed for continuous operation, high airflow capacity and long service life. If you are looking to purchase an exhaust fan for ventilation improvement, heat reduction or air extraction, this page outlines our available models and specifications.
For complete ducting design and airflow calculation services, please refer to our Industrial Exhaust System Malaysia page.
If your project requires multiple extraction points or duct routing, you may require a full Industrial Exhaust System Installation Service instead of a standalone fan.
See how CrystalAir’s industrial exhaust fan operates, including its automatic shutter mechanism, in this close-up demonstration video.

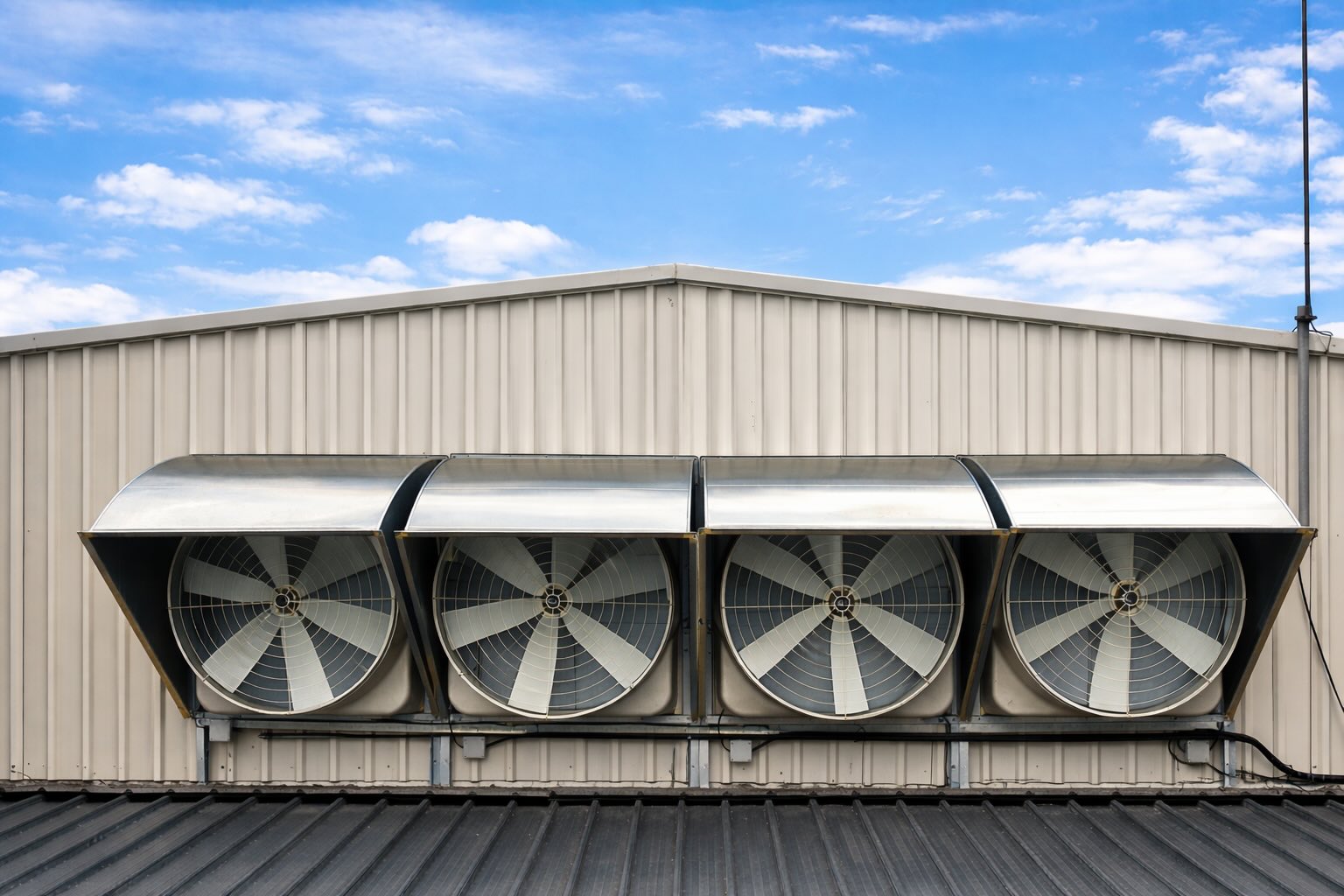

Our SMC Fiberglass Industrial Exhaust Fan is designed for high-volume ventilation in factories, warehouses and industrial buildings. Manufactured with a corrosion-resistant Sheet Moulding Compound (SMC) housing, it is suitable for applications requiring durable equipment, continuous air extraction and reliable airflow.
The direct-drive design connects the motor directly to the fan blades, eliminating the need for belt transmission and reducing routine belt maintenance. With high airflow capacity and an automatic shutter, this industrial exhaust fan is suitable for wall-mounted factory ventilation and selected rooftop applications with appropriate weather protection and installation arrangements.
Model : EXF-250
Airflow : 25000 CMH
Power : 0.37 kW
Voltage : 415V
Noise : <65 dB
Weight : 50 kg
RPM : 720
Size(mm) : 850 x 850 x 480
Model : EXF-330
Airflow : 33000 CMH
Power : 0.5 kW
Voltage : 415V
Noise : <60 dB
Weight : 50 kg
RPM : 560
Size(mm) : 1060 x 1060 x 560
Model : EXF-400
Airflow : 40000 CMH
Power : 0.75 kW
Voltage : 415V
Noise : <70 dB
Weight : 67 kg
RPM : 560
Size(mm) : 1260 x 1260 x 560

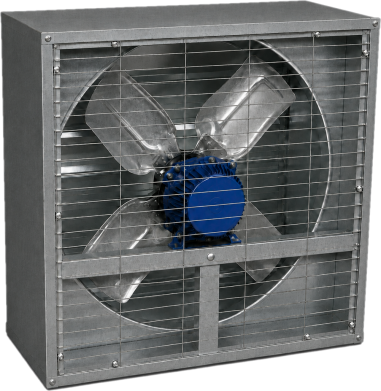

CrystalAir Industrial Box Type Exhaust Fans are designed for high-volume air extraction in factories, warehouses, production areas and industrial workshops. They help remove accumulated heat and stagnant indoor air while supporting better ventilation across large working spaces.
We supply both belt-driven and direct-drive box type exhaust fans to suit different airflow requirements, installation conditions and maintenance preferences. These fans can be installed at suitable wall openings as part of a properly planned factory ventilation system. Correct fan sizing, placement and adequate replacement-air openings are essential for effective performance.
Model : EX-200
Airflow : 20000 CMH
Power : 0.38 kW
Voltage : 240V
Noise : <60 dB
Weight : 32 kg
RPM : 660
Size(mm) : 800 x 800 x 400
Model : EX-325
Airflow : 32500 CMH
Power : 0.75 kW
Voltage : 240V / 415V
Noise : <70 dB
Weight : 55 kg
RPM : 600
Size(mm) : 1100 x 1100 x 400
Model : EX-440
Airflow : 44000 CMH
Power : 1.1 kW
Voltage : 415V
Noise : <65 dB
Weight : 85 kg
RPM : 439
Size(mm) : 1380 x 1380 x 400
Model : EX-050D
Airflow : 5000 CMH
Power : 0.18 kW
Voltage : 240V
Noise : <50 dB
Weight : 13 kg
RPM : 1400
Size(mm) : 500 x 500 x 350
Model : EX-085D
Airflow : 8500 CMH
Power : 0.25 kW
Voltage : 240V
Noise : <62 dB
Weight : 17 kg
RPM : 1400
Size(mm) : 600 x 600 x 350
Model : EX-100D
Airflow : 10000 CMH
Power : 0.25 kW
Voltage : 240V
Noise : <62 dB
Weight : 25 kg
RPM : 650
Size(mm) : 700 x 700 x350

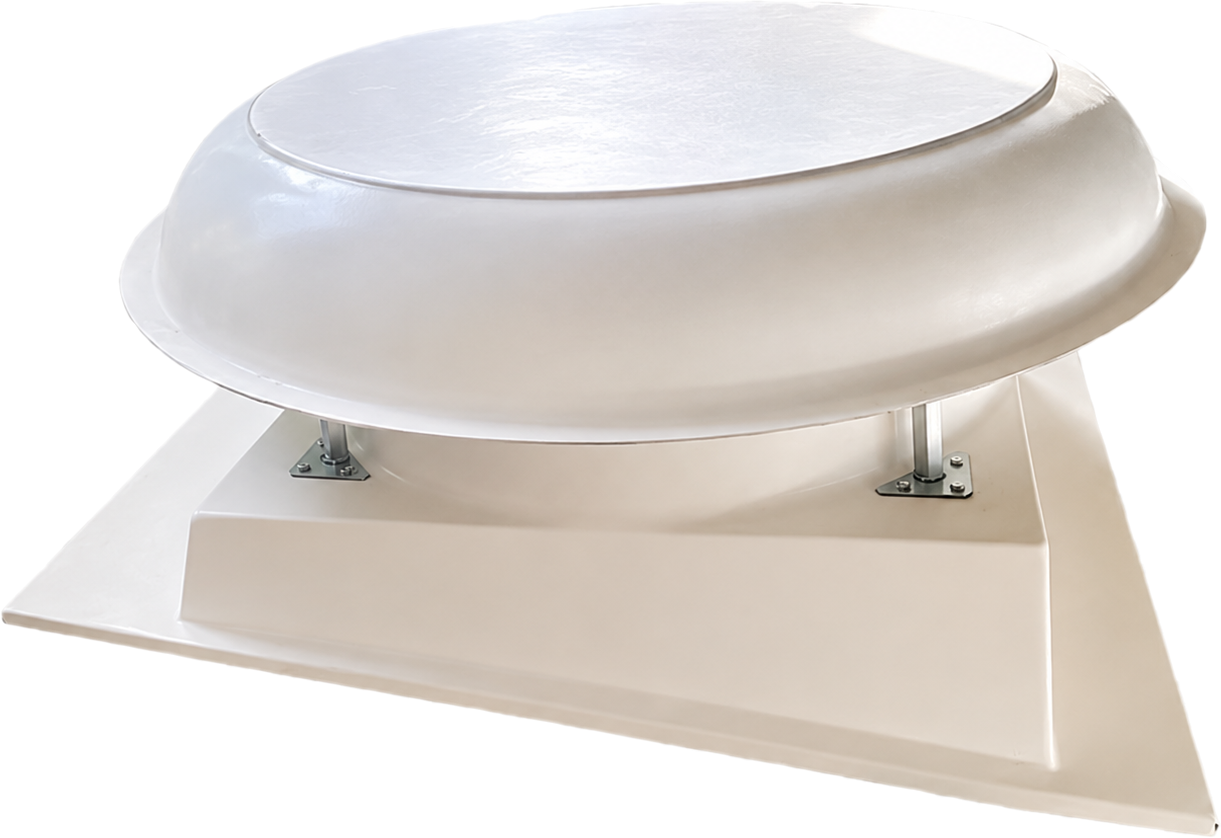

Our Rooftop Exhaust Fan is specially designed for installation on the rooftop of factories, warehouses and industrial buildings. It helps extract hot air, stale air and trapped heat from the highest point of the building, where heat naturally accumulates. Unlike conventional fiberglass exhaust fans that require an additional weather hood for roof installation, this rooftop model comes with a dedicated roof-mounted design, making it a cleaner, more practical and more weather-suitable solution for rooftop ventilation applications.
This fan is ideal for buildings where wall-mounted exhaust fans are not suitable, or where additional roof-level air extraction is required to improve overall airflow. When properly installed with roof support and flashing, the rooftop exhaust fan can help improve indoor air circulation, reduce heat build-up and create a more comfortable working environment for factories, warehouses, workshops and production areas.
Model : EXR-450
Airflow : 45000 CMH
Power : 1.1 kW
Voltage : 415V
Noise : 60 dB
Weight : 75 kg
RPM : 560
Size(mm) : 1850 x 1490
CrystalAir Commercial Small Exhaust Fans are suitable for localized ventilation in smaller commercial and industrial spaces, including workshops, utility rooms, storage areas and selected factory sections.
These wall-mounted exhaust fans are available in different sizes and airflow capacities for applications that do not require large industrial extraction equipment. Selection should consider room volume, required air exchange, available installation space and the type of air being extracted.
E-12
Size: 12 inch
Voltage (V): 240V
Power: 100W
Airflow (CMH): 1800
Noise (dB): 69
RPM: 1400
Dimension (mm): 400x400x270
E-16
Size: 16 inch
Voltage (V): 240V
Power: 160W
Airflow (CMH): 2880
Noise (dB): 74
RPM: 1400
Dimension (mm): 500x450x285
E-18
Size: 18 inch
Voltage (V): 240V
Power: 230W
Airflow (CMH): 4920
Noise (dB): 78
RPM: 1400
Dimension (mm): 570x570x320
E-24
Size: 24 inch
Voltage (V): 240V
Power: 700W
Airflow (CMH): 11760
Noise (dB): 80
RPM: 1400
Dimension (mm): 710x700x355
E-24B
Size: 24 inch
Voltage (V): 240V
Power: 330W
Airflow (CMH): 6300
Noise (dB): 76
RPM: 960
Dimension (mm): 710x700x355
E-24H
Size: 24 inch
Voltage (V): 415V
Power: 700W
Airflow (CMH): 11760
Noise (dB): 80
RPM: 1400
Dimension (mm): 710x700x355
CrystalAir supplies and installs industrial exhaust fans for factories and warehouses throughout Malaysia. The following projects demonstrate how different fan types and installation arrangements can be selected according to building layout and ventilation requirements.
For a metal fabrication factory with ground-floor and mezzanine areas, CrystalAir installed a combination of box type exhaust fans and rooftop exhaust fans to provide air extraction at different building levels.
This arrangement supports the removal of stagnant air from lower working areas and accumulated hot air from the upper roof space.
For a factory experiencing hot and stuffy indoor conditions, CrystalAir installed an active ventilation system using EX-325 and EX-200 box type industrial exhaust fans.
The fans were positioned across the building to support air exchange and reduce stagnant indoor air in different production areas.
Every factory has different ventilation requirements. Contact CrystalAir for advice on suitable industrial exhaust fan models, airflow requirements and installation arrangements.
Choosing the correct fan depends on:
Floor area (m²)
Ceiling height
Required air changes per hour (ACH)
Heat load level
Installation position (wall or roof discharge)
If you wish to learn more on how to select your industrial exhaust fan, feel free to explore Industrial Exhaust System Guide Malaysia.
Related reading : common exhaust fan installation mistakes
Price depends on size, motor power and airflow capacity. Contact us for a quotation based on your project requirement.
Sizing depends on required air changes per hour (ACH) and heat load. Our team can assist with airflow estimation.
